ANDYCINE A6 Plus 5.5inch Touchscreen 4K HDMI Camera Field Monitor with waveform/vector scope/3D LUT

stars, based on ( 24 )reviews

$189.99 unit

Packing list

Product Tag:

3D LutTouch Screen4k HDMI Input outputANDYCINEon camera monitorCamera Video Field Monitor5.5inch Camera HDMI MonitorA6 plus monitortouch screen monitor

Description

Brand: ANDYCINE Item Number: A6Plus

[Touch Panel】5.5inch IPS Touch Panel Perfect size for gimbal and handheld stablizers. 1920*1080P native resolutions. Touch screen, free your hand with several finger touch easily access to the menu and quick path to useful function such as histogram, peaking, false color etc

【4K HDMI Input and 4K HDMI Loop out】. Support 4K HDMI Signals: 4096X2160P 24Hz 4K UHD 3840X2160P (30/29.97/25/24/23.98Hz) Live views your image or video on the A6 Plus with HDMI Cords. HDMI loop output offer the secondary HDMI Monitor connections

【3D Lut Supported Monitor】. The monitor will load 3D Lut files via the SD card slot. You can easily load, edit, and display your files.

【8V DC Output】Real-time to power your dslr cameras (For Sony, Nikon, Fuji, Canon Cameras). 8V DC power output via a DC Coupler (not include) will continue powering your dslr cameras for long time shooting and time lapse photograph

【Triple Power Source】Accepts the Sony-np-f series battery as well the Canon LP-E6 battery as power source. Beside those, the monitor accept the DC Adapters(5.5MM/2.1MM Pin Dimension) The batteries and DC Adapter were NOT Included

【User Friendly Desing】3 Points of 1/4inch screw holes(Top,bottom,right side) The monitor with swivel arms which give you the ideal viewing angles. There is a cold shoe which can attach microphone,led lights. Good sound customer servier,1 year quality assurance, free return and replacement if there is any quality issues within 1years. Good sound 24x7customer service from andycine. Buy with andycine, buy with confidence

Support Touch Screen and Button Control Menu

●You can also get a quick glance at your menu settings and features with an easy tap on the screen.

●It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings.

●Tap the power switch to turn off the touch function, designed to prevent misuse.

3D LUT Color Calibration and Real-time Preview

A6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all majorcameras.

The LUT loading function makes the color calibration work of the previous shooting easier and more

intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration

3D LUT cube can be uploaded to F6 PLUS by SD card.

4K HDMI Input & Loop Output

The A6 PLUS has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out

to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining

the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

Flexible Dual-purpose Battery Plate

Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing

long-time working condition for cameraman in shooting applications.

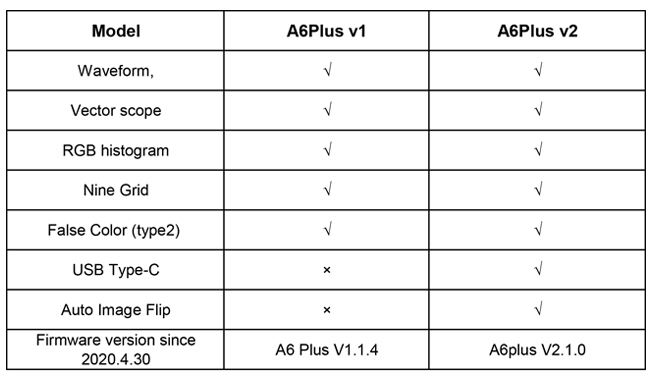

What is the difference between A6PLUS v1 and V2 ?

Noted:

1. USB Type-C Power input: You can use USB power adapter or Powerbank to power V2 monitor.

2. Auto Image Flip(Horizontal&Vertical)

Pls check your firmware version in the menu of the monitor before contact us cs@andycine.com to get the lastest firmware.

Detail Image

Convenient Mounting - Tilt Arm

Every A6 PLUS monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure

way to position their monitor while maintaining a low profile.

• Allows the A6 PLUS monitor to rotate 360 degrees for viewing convenience

• Secure and lightweight mounting via shoe mount or 1/4"-20 thread

• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

Andycine A6 PLUS features standard 1/4" mount points (top, bottom, right) for attaching it to cameras

and rigs. Not only you can install it on a monitor through tilt arm, but also you can mount it on a handheld

stabilizer or securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the

bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

Portable Sunshade, Easy Install

The A6 PLUS monitor is equipped with a sunshade, which allows the photographer to focus more on the video

and avoid the interference of strong light, providing a better visual experience. The installation process is simple

and fast, which is very suitable for outdoor shooting.

What is New On the ANDYCINE A6 PLUS？

Monitoring Tools with Quick Accessibility

The A6 PLUS keeps the original great: it's small, lightweight and has great image quality.

In addition, it now features the touch screen and has the ability to import 3D LUTs via the

SD card. The A6 PLUS is the perfect monitor for those who need an easy-to-use lightweight

on-camera monitor such as gimbal operators, or shooters that are always on the go.

Its touchscreen conveniently allows you to zoom your image with a pinch gesture and tap to

access the menu settings. There are also a variety of onscreen tools to help you set up your shots,

including histogram, peaking, embedded audio, exposure, false color, zoom, guides, pixel-to-pixel,

anamorphic mode, image freeze and more.

1920x1080 Display with Rec. 709 Color Calibration

The 5.5" IPS screen features a 1920 x 1080 resolution, packing 400 pixels per inch and provides

a wide viewing angle of 160° and for easier off-axis position monitoring. Built-in 3D LUT color

calibration, which complies with the standard of REC-709, can calibrate each monitors so that

it can eliminate the trouble of color cast.

Vectorscope: Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Waveform / Vector scope /Histogram

Waveform: This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

AndyCine A6 Plus Features

Touch screen menu operation
Support 3D LUT Log to REC.709 and user 3D LUT upload
1920x1080 full HD IPS screen
Support 4K HDMI input and output: UHD 4K 3840 x2160p (30/29.97/25/24/23.98Hz), DCI 4K 4096 x2160p (24Hz)
Histogram is a quantitative tool to inspect the image brightness, to guide the exposure control
Focus Assist (red, green, blue, white, yellow five peaking colors optional)
Audio Meter
Zebra and False Color function, convenient to guide the using light when shooting and the post production
Monochrome (gray, red, green, blue)
Image Zoom-in function
Anamorphic Mode
Image Flip H and Flip V
Image Freeze
Pixel to Pixel
Marker Mat, Center Marker and Safety Marker
Brightness, Contrast, Sharpness, Hue, Saturation and Color Temp Adjustment
Stereo Earphone output
DC 8V power out to power your DSLR camera or mirrorless camera
External sunshade, sunlight readable
In the Box(A6Plus)
1 x A6Plus Camera Monitor
1× HDMI to Micro HDMI Cable
1× Tilt Arm
1× Sunshade
1× Manual
Limited 1-Year Manufacturer Warranty
In the Box(A6Plus Bundle)
1 x A6Plus Camera Monitor
1× HDMI to Micro HDMI Cable
1× Tilt Arm
1× Sunshade
1× Manual
1x F550 battery+USB-C Charging Cable
1x Carrying bag
Limited 1-Year Manufacturer Warranty

Download user manual:A6 PLUS USER MANUAL

Download upgrade Firmware:A6 plusV1: V 1.2.6 firmware upgrade

(Please note: Do not change the name of the upgrade program! This is only for A6 PLUS V1 (without Type-C) user update, if your monitor is Type-C version, don’t use this to update your monitor)

Download upgrade Firmware:A6 plus V2: 2.2.0 firmware upgrade

(Please note: Do not change the name of the upgrade program! This is only for A6 PLUS V2 (with Type-C) user update, if your monitor without type-c version, don’t use this to update your monitor)

Download instruction to upgrade Firmware:Instruction firmware upgarde of A6plus

PLS CONTACT US IF YOU DON'T KNOW YOUR A6plus version:info@andycine.com

1. We accept PayPal only.

2. All major credit cards are accepted through secure payment processor PayPal.

3. Payment must be received within 7 business days of auction closing.

4. We will ship to your address. Please make sure your address is correct before you pay.

Shipping

1.Fast Free Shipping ,We have Stock in US, Europe, China ,shipping time 3-7 days

2. We Ship to worldwide.If you can't place the order in your country, please contact us to help you buy it sucessfully.

3. Items will be shipped within 2 business day on payment received.

Policies

1. All our products are new. 1 Years Warranty. Buy with confidence！

2. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact me before you return it.

3. Shipping & handling charges are non-refundable. Buyer is responsible for all return shipping cost.Prepaid return labels are only provided to customers that have received an incorrect or damaged item.

4. Item must be returned in condition received (Tags & Packaging).

About us

1. All messages will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your message and we will reply to you as soon as possible.

2. We do all that is within our powers to provide excellent customer service to all our buyers. If you think there is a reason to leave negative or neutral feedback, please contact us for assistance and we will do our best to resolve the problem as soon as possible.

DISPLAY SPEC.:: Screen Size: 5.5,Resolution: 1920x1080 pixels ,Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm ,Aspect Ratio: 16:9 ,Brightness: 500cd/m² ,Contrast Ratio: 1000:1,Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

INPUT/ OUTPUT:: Input: 1 X 4K HDMI ,Output: 1X 4K HDMI, DC Output ,Audio: 3.5mm Stereo Headphone

GENERAL:: Input Voltage: DC7～24V,Consumption: ≤9W,Connector: DC ,Working Temperature: -20°C~55°C,Storage Temperature: -30°C~65°C ,Install Way: ¼-20 thread points (top, bottom, right),Unit Size: 148Lx93Hx20D (mm),Unit Weight: 235g,Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Canon LP-E6
