Andycine A6 Max 6 Inch Touch Screen Camera Field Monitor with F970 Power Kit

stars, based on ( 0 )reviews

$139.99 piece

Packing List

Description
Reviews (0)

Andycine A6 Max 6 Inch Touch Screen Camera Field Monitor with F970 Power Kit

Brand: Andycine Model No.:A6 Max

Overview

A6 Max down to just 245g and added 1/4-20 screw mounts top, bottom and right for ease of cage, adaptor rigging, and tilt arm. There are an F970 battery plate and an install/ power kit on the back of the monitor, the install/ power kit can power and install the external equipment, like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. A6 Max is compatible with most cameras and HDMI-ready devices and is the perfect companion for the shooters that are always on the go.

[Vivid Touchscreen] The A6 Max DSLR Camera Monitor with 5.5inch 1920*1080P touchscreen.450nis Brightness with sun hood easy to operate under the strong sunlight.With two fingers to zoom and pinch the images. Quick access to menu and other function by touching the left and bottom area on the screen

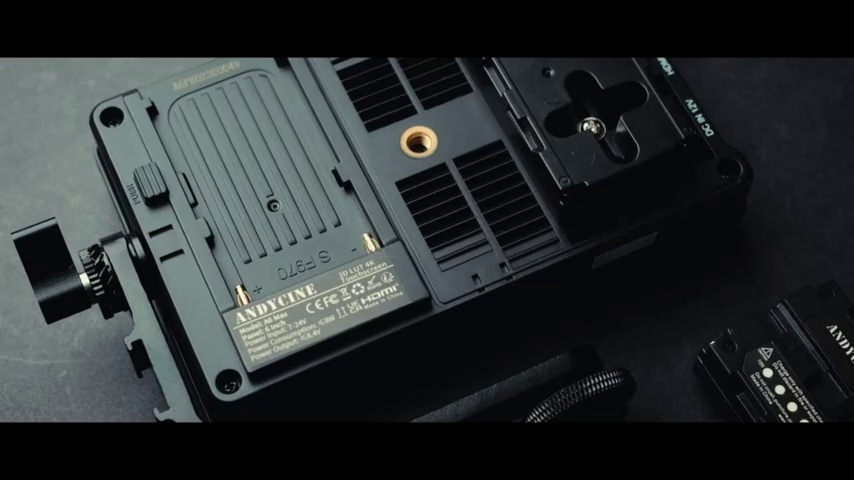

[External Install Power Plate] The F970 external install power plate aims install and power the external equipment, like wireless transmitter, LED light, video converter and others photographic equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
[Adequate Bundle] This bundle come with battery,battery charger,micro& Mini Hdmi Cords,Carry Case. Start to use at once no extra coin spend on battery and different cords. Save your money and time to create more significant image&video works.
[Help you accurate focus and Exposure] The advanced histogram,zebra,focus assist,waveform features help you focus and exposure correctly. Other image flip,nine grip,safe area etc will always to help you frame the video and images.
[Widely Compatible for Camera]The A6 Max accept the max 4K 30 FPS signal with HDMI Input and Loop Out. With 3D LUT function. Easily preview your LUT effect on the monitors. The 8.4V DC output could power your camera with selected power cable(not include)

Specifications

Display Spec.

Model	A6 Max
Screen Size	6" IPS Touch Screen
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) x 0.069 (V) mm
Aspect Ratio	16:9
Brightness	450cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input

1 X HDMI	HDMI
1 X Type-C	5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)

Output

1 X HDMI	HDMI
1 X DC Output	DC Output

Audio

Stereo Headphone

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General

Input Voltage	DC7～24V
Power Consumption	≤8W
Power Connector	DC
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	¼-20 thread points
Unit Size	148Lx93Hx20D (mm)
Unit Weight	245g
Color Box Size	186L124W80H(mm)
Outer Carton Qty	10
Outer Carton Size	465200326 (mm)
Gross Weight	7.4kgs

Features

* High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 450cd/m², 160° wide viewing angles IPS Panel
*This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment
*Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Provides auxiliary power out; allowing shooters to power their cameras
* All waves
* Waveform (RGB, Y, YUV)
* Histogram(RGB1, Y, RGB2)
* Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure
* Nine Grid
* Scan Mode (Under Scan, Over Scan)
* Zoom (4x,9x,16x)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
* Pixel to Pixel
* Center Marker
* Safe Area (80%,85%,90%,93%,96%,2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Marker Color (Red,Green,Blue,White,Black）
* Check Field (Red/Green/Blue/Mono)
* Image Flip (H, V, H/V)
* Image Freeze
* Zoom All (0~500 adjustable)
* U/D & L/R Zoom (0~500 adjustable)
* Color Temperature Adjustment

In the Box (A6 Max)

1 x A6 Max Camera Monitor

1 x HDMI to Micro HDMI Cable

1 x Tilt Arm

1× Sunshade

1 x User Manual

1 x USB-C to USB-A Adapter

1× Disassemble Wrench

Limited 1-Year Manufacturer Warranty

In the Box (A6 Max Bundle)
