Brand: ANDYCINE                                        Item Number: AC C7

【Large Monitor with Easy Touch Controls】 The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

【Accurate waveform monitoring】When you need to analyze image quality more accurately than simply looking at the picture then use C7's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope

【2200nit Daylight Viewable】The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

【Light Sensor for Auto Dimming】And C7 has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

【4K HDMI Loop-out】The C7 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Key Specs

Display

Inputs&Outputs

Format Support

Power

General

Simple OS, Sophisticated Shots
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.

Trust What You See
Simple monitoring tools put every detail of the image within your control. RGB parade and vectorscopes ensure perfect colors on your calibrated monitor. Scopes for accurate exposure and focus.

• 3D LUT
• False Colors
• Waveform
• Exposure
• Vectorscope
• Zoom
• Histogram
• Image Flip
• Focus Assist
• Anamorphic Mode
• Nine Grid
• Embedded Audio

2200nit Daylight Viewable
The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

Light Sensor for Auto Dimming
C7 has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

Large Monitor with Easy Touch Controls

The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

Load Custom 3D LUTs to Recreate Film Looks!
Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG to Rec.709 video or upload .cube files. C7 allows you to load internally up to custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

Accurate waveform monitoring
When you need to analyze image quality more accurately than simply looking at the picture then use C7's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. C7 is perfect for live production monitoring and removes the need for separate expensive scopes!

Convenient Mounting - Tilt Arm
Andycine C7 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the C7 monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

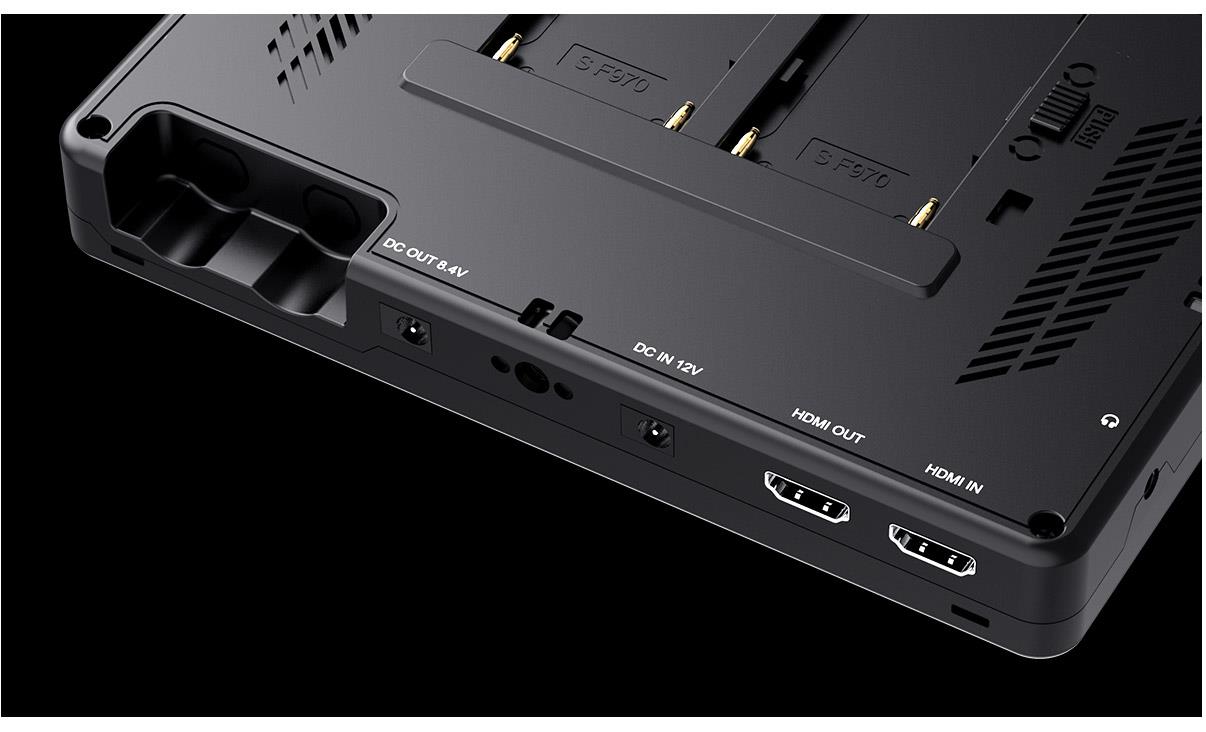

Innovative Power Supply Design
The new design also features upgraded batteries and supports two standard Sony L Series batteries. You get 2 rear battery slots for mounting Sony L Series batteries, so you have enough power for the brighter screens. Plus with 2 battery slots, you can change batteries without interrupting monitoring! A 12v universal power supply is included for studio or on location use.
● Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 series.

Power Your DSLR or Mirrorless Camera
The Andycine C7 is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the C7 provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the C7 extends camera run-time, while providing a more usable display.

True Color · Professional Color Calibration
Use Rec.709 color standard
Andycine uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction
Andycine monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

High-resolution 1920 x 1200
High-contrast of 1200:1
Ultrabright 2200 cd/m²
160° wide-view-angle IPS Panel
Histogram
Peaking focus assist (red, green, or blue highlight over parts of the image in focus)
False color
Zebra exposure
Nine-grid
Embedded audio
Scan mode (underscan, overscan)
Zoom (4x, 9x, 16x)
Anamorphic mode (1.3x, 2x, 2x mag)
Pixel-to-pixel
Center marker
Safe area (80, 85, 90, 93, 96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Marker color (red, green, blue, white, black)
Check field (red, green, blue, mono)
Image flip (H, V, H/V)
Image freeze
Color temperature adjustmentDual rear battery mount is compatible with Sony L-series/NP batteries: F-970, F-960, F-950, F-930, F-770, F-750, F-730, F-570, F-550, F-530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, F-M71, F-M70 series.

Display Colors 16.7M (8 bit)

Pixel Density 440 PPI

Color Gamut 90% NTSC,  Rec.709 Color Celibration

Aspect Ratio  16:9

Adjustable Backlight   YES

Viewing Angle   85°/85°(L/R) 85°/85°(U/D)

Input/Out Signal HDMI v1.4

SD Card Slot SD Card for 3D LUT uploading and Firmware upgrades

Audio 3.5mm Stereo Headphone

HDMI Input&Out Support Format 480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), DCI 4K 4096×2160p (24Hz)

Power Out DC 8V to power camera with a separately available DC coupler

Power Consumption ≤ 10W

Input Voltage DC7 ～24V

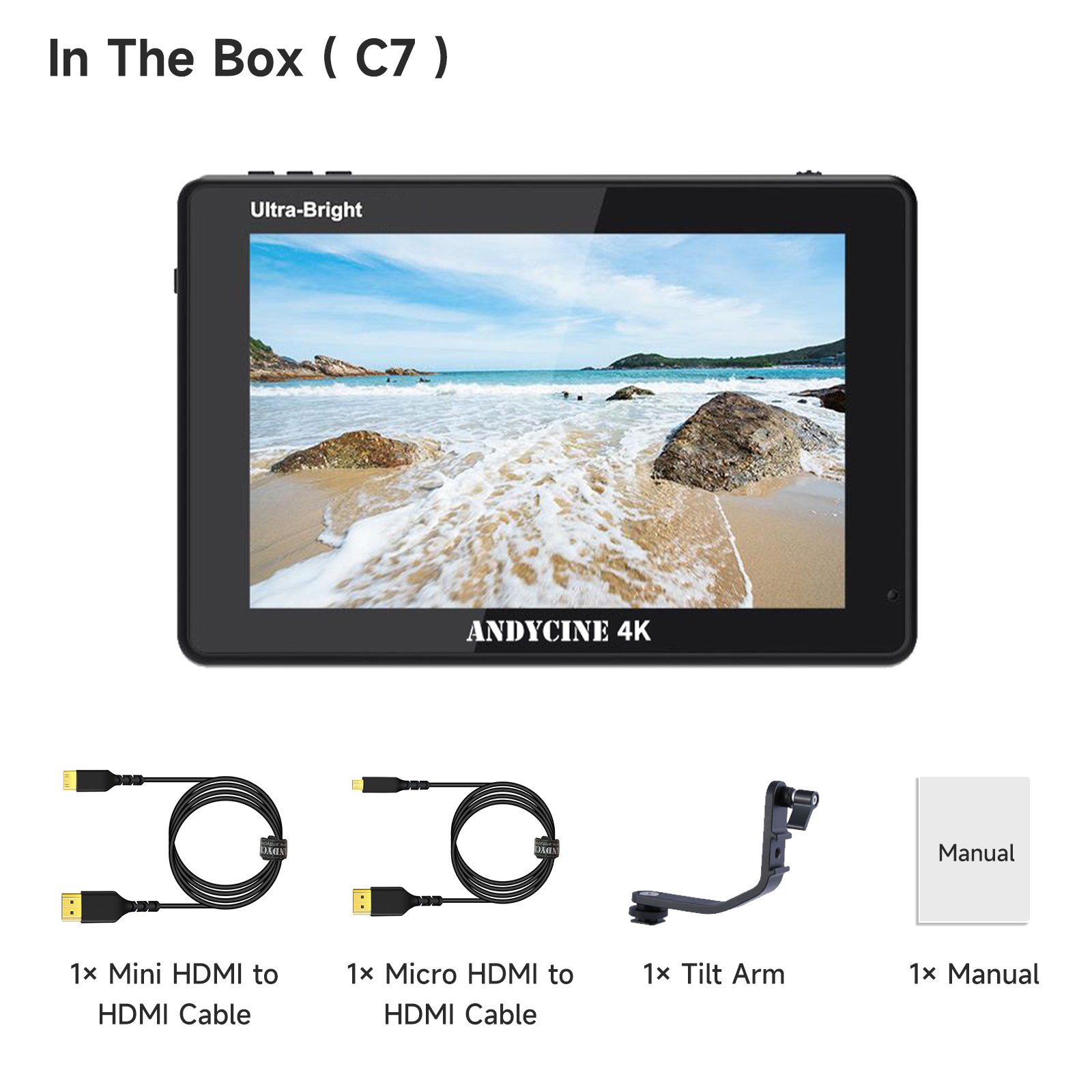

In the Box (C7)

1 x C7 Camera Monitor

1× Mini/ Micro HDMI to HDMI Cable

1× Tilt Arm

1× Manual

Limited 1-Year Manufacturer Warranty

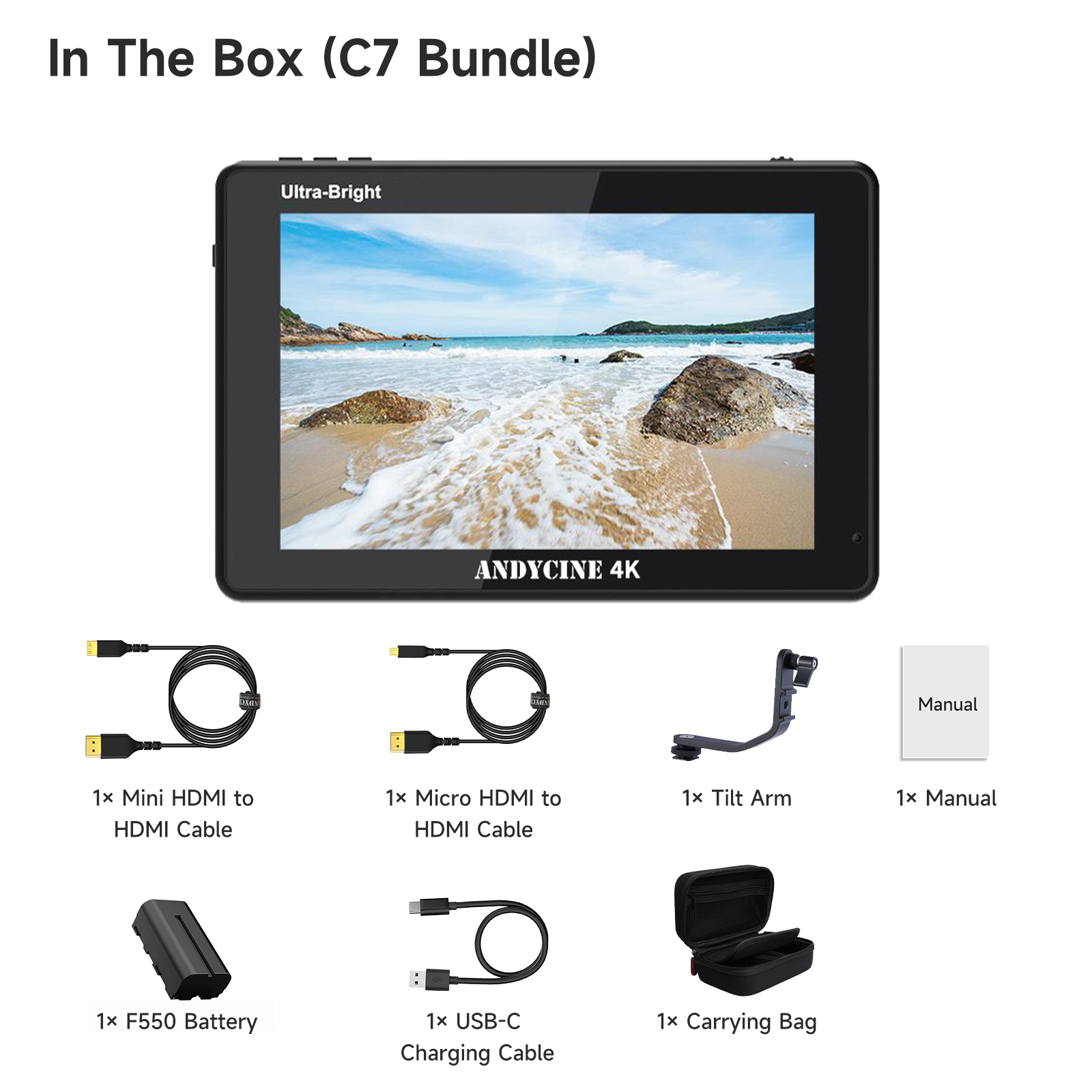

In the Box (C7 Bundle)

1 x C7 Camera Monitor

1× Mini/ Micro HDMI to HDMI Cable

1× Tilt Arm

1× Manual

1x Carrying bag

1x  F550 battery+USB-C Charging Cable

Limited 1-Year Manufacturer Warranty

Download user manual:Andycine C7 user manual
