Andycine X5 5.5" High-Brightness 4K HDMI Aluminum Housing Touchscreen Monitor

Brand: Andycine Model No.: X5

Key Features

Compact 5.5" On-Camera Monitor, Only 0.5lb

1920 x 1080 Touchscreen Display

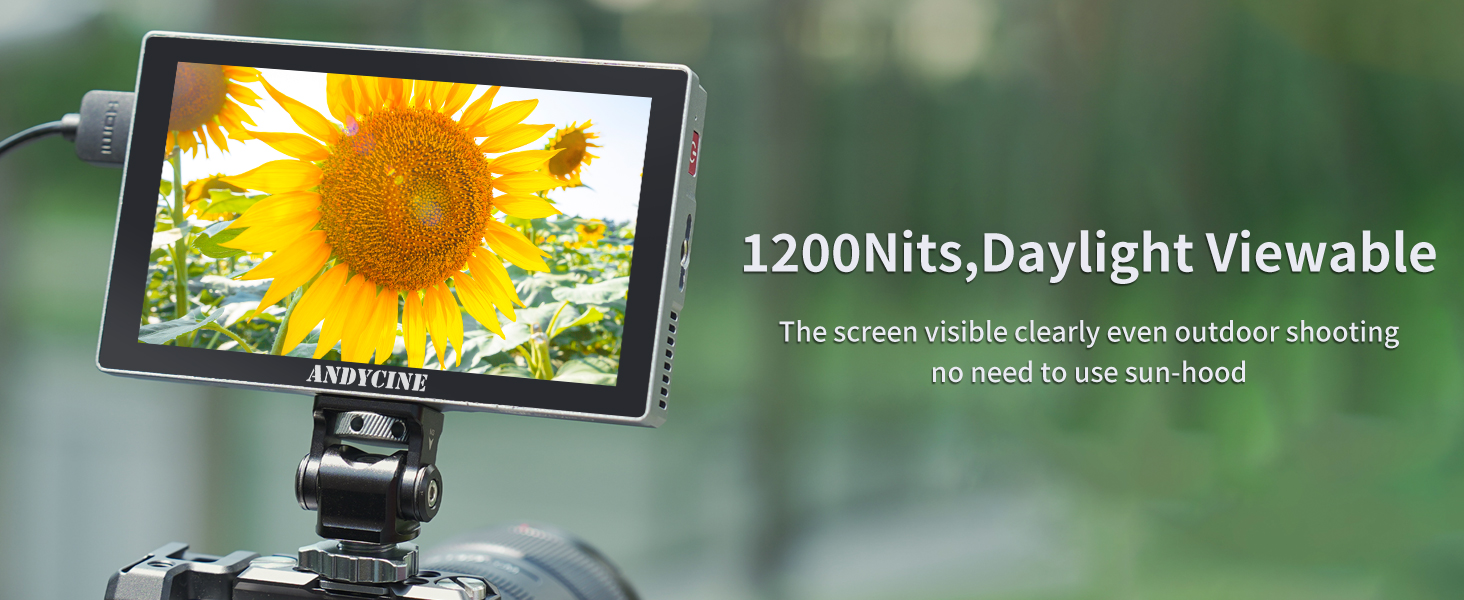

1200 cd/m² High Brightness

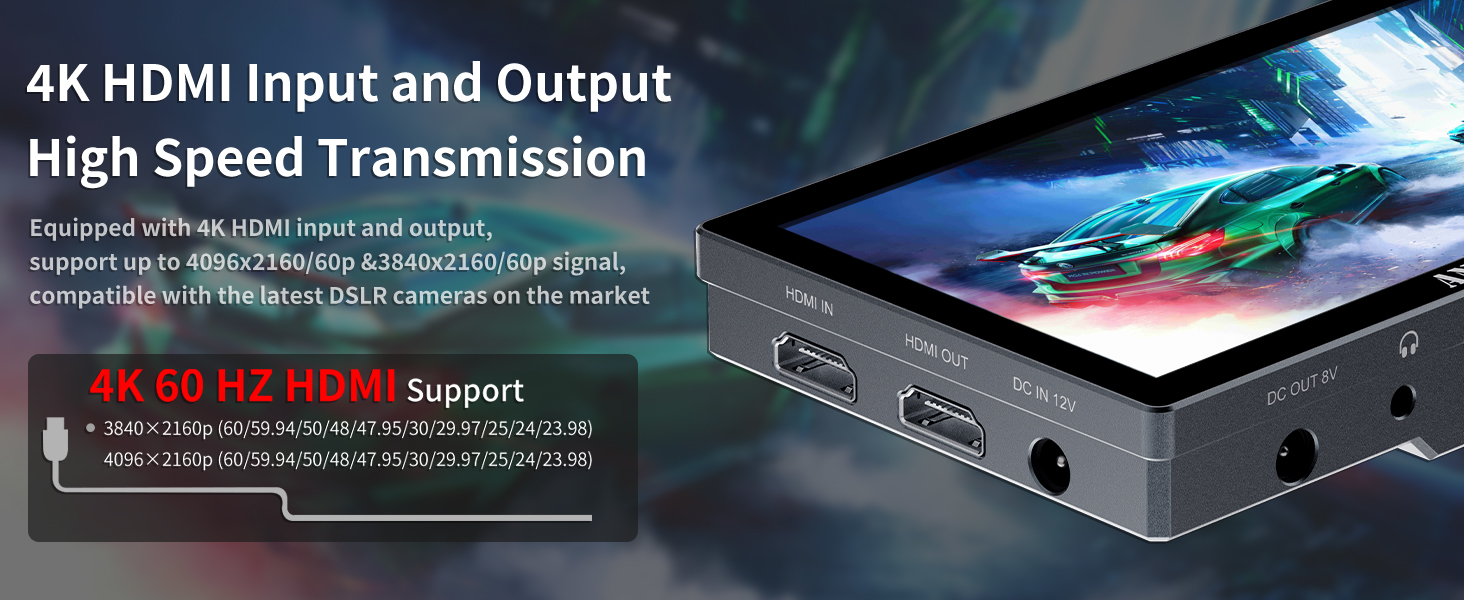

1 x 4K/60p HDMI 2.0 Input & 1 x HDMI 2.0 Loop Output

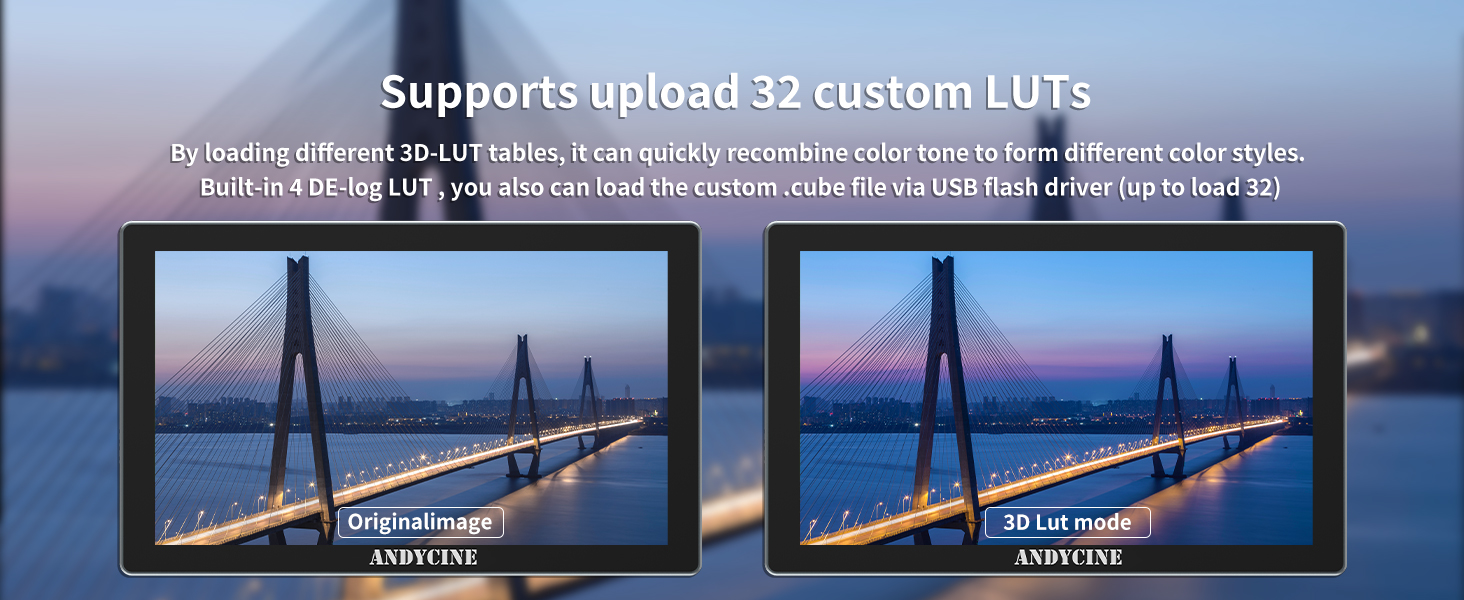

Support Up to 32 Custom 3D LUTs

Rugged Aluminum Housing

Built-In Image Management Tools, Histogram, Vectorscope & More

DC & USB-C Power Inputs

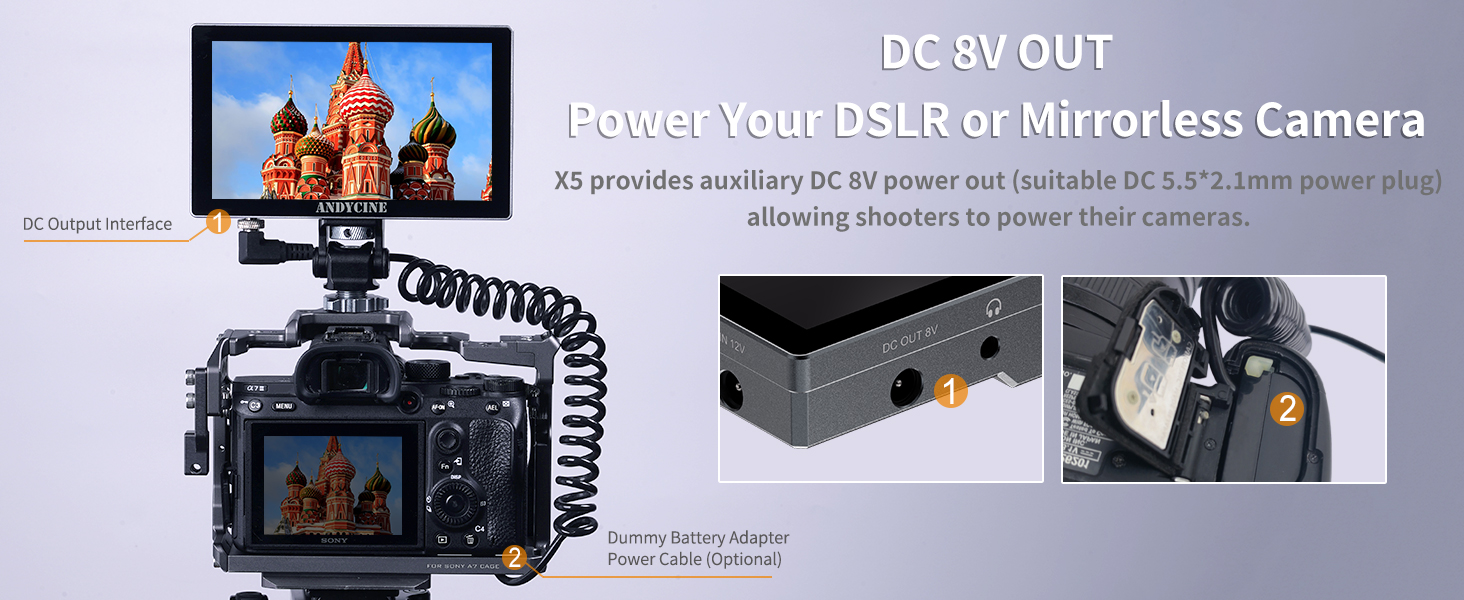

DC Output for Powering Camera

L-Series Battery Plate

Three 1/4"-20 Threads, Cold Shoe Adapter

Limited 1-Year Manufacturer Warranty

Key Specs

Display Size	5.5" / 14.0 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	Yes, Hybrid Log Gamma
Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Media/Memory Card Slot	No

Power Consumption	10 W

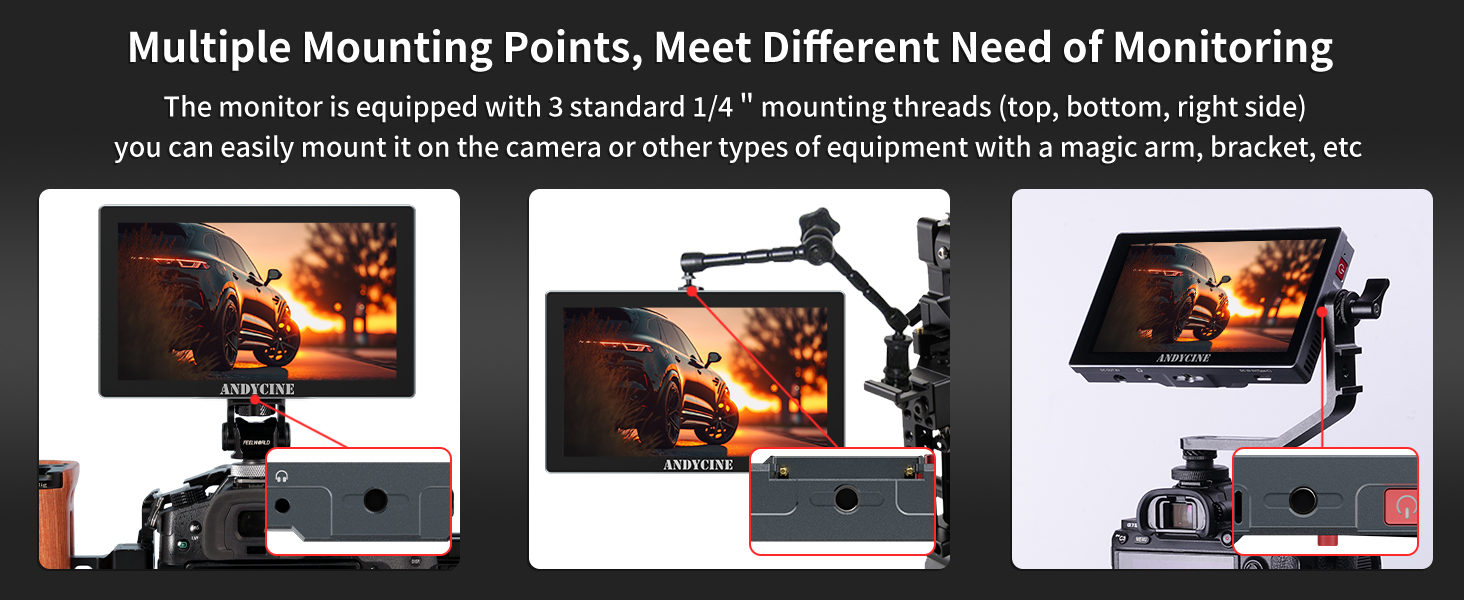

Mounting	1x 1/4"-20 Female (Bottom) 1x 1/4"-20 Female (Top) 1x 1/4"-20 Female (Right)

Display

Panel Type	IPS-Type LCD
Display Size	5.5" / 14.0 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 160° (80/80) Vertical: 160° (80/80)
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m2
Contrast Ratio	1000:1
HDR Support	Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)	400 ppi

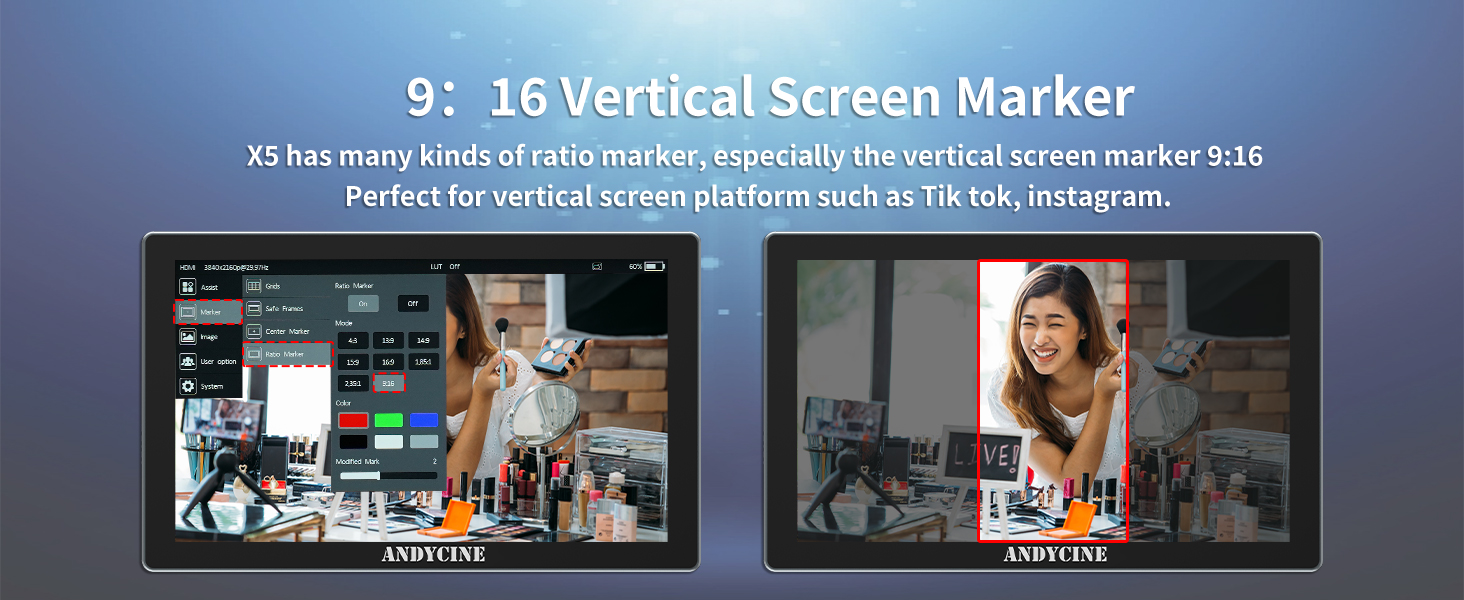

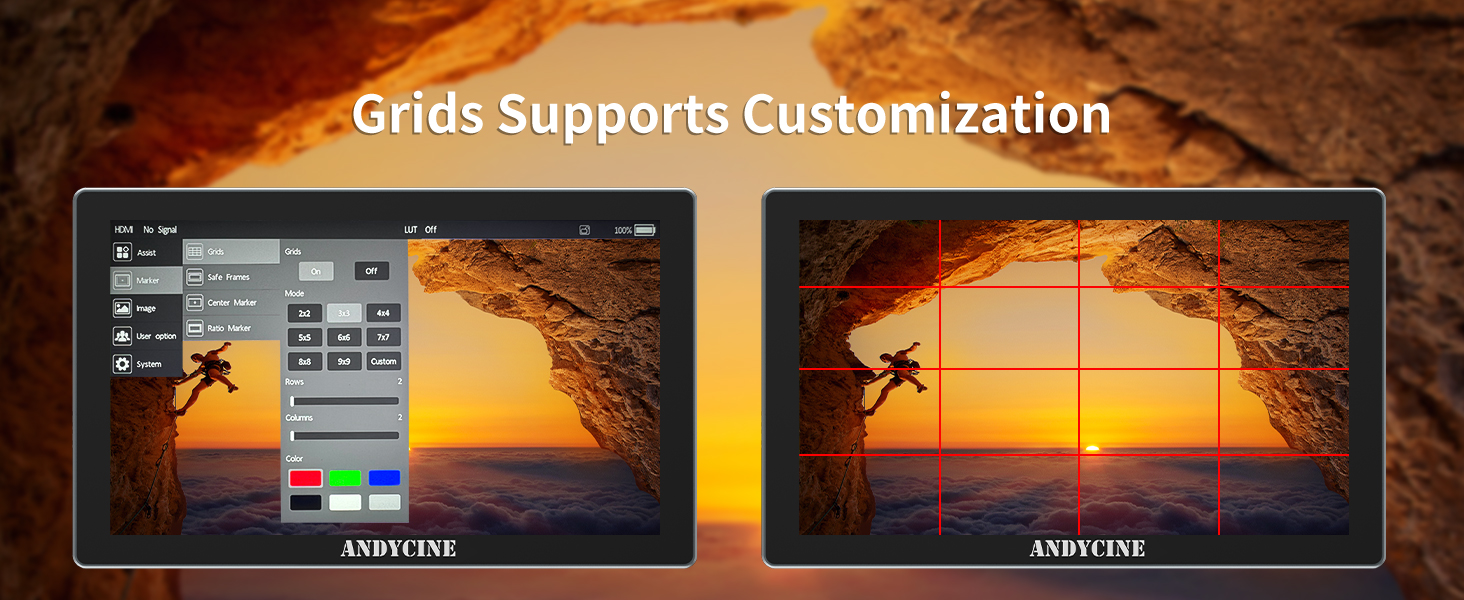

Image Controls	Anamorphic De-Squeeze, Check Field, False Color, Histogram, Image Flip, Image Freeze, Overscan, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform

Inputs&Outputs

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	Stereo
Power I/O	1x Barrel (12 VDC) Input 1x Barrel (8 VDC) Output 1x USB-C (5 VDC) Input
Other I/O	1x USB-C (Firmware/LUT Upload) Input [Shared with Power]
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Video Format	HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i

Power

Input Power	7 to 24 VDC
Power Consumption	10 W

Mounting

Mounting

1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Right)

General

Operating Conditions	-4 to 122°F / -20 to 50°C
Storage Conditions	-22 to 140°F / -30 to 60°C
Material of Construction	Aluminum
Dimensions	5.5 x 3.3 x 0.9" / 138.5 x 84.5 x 22 mm
Weight	0.5 lb / 249 g

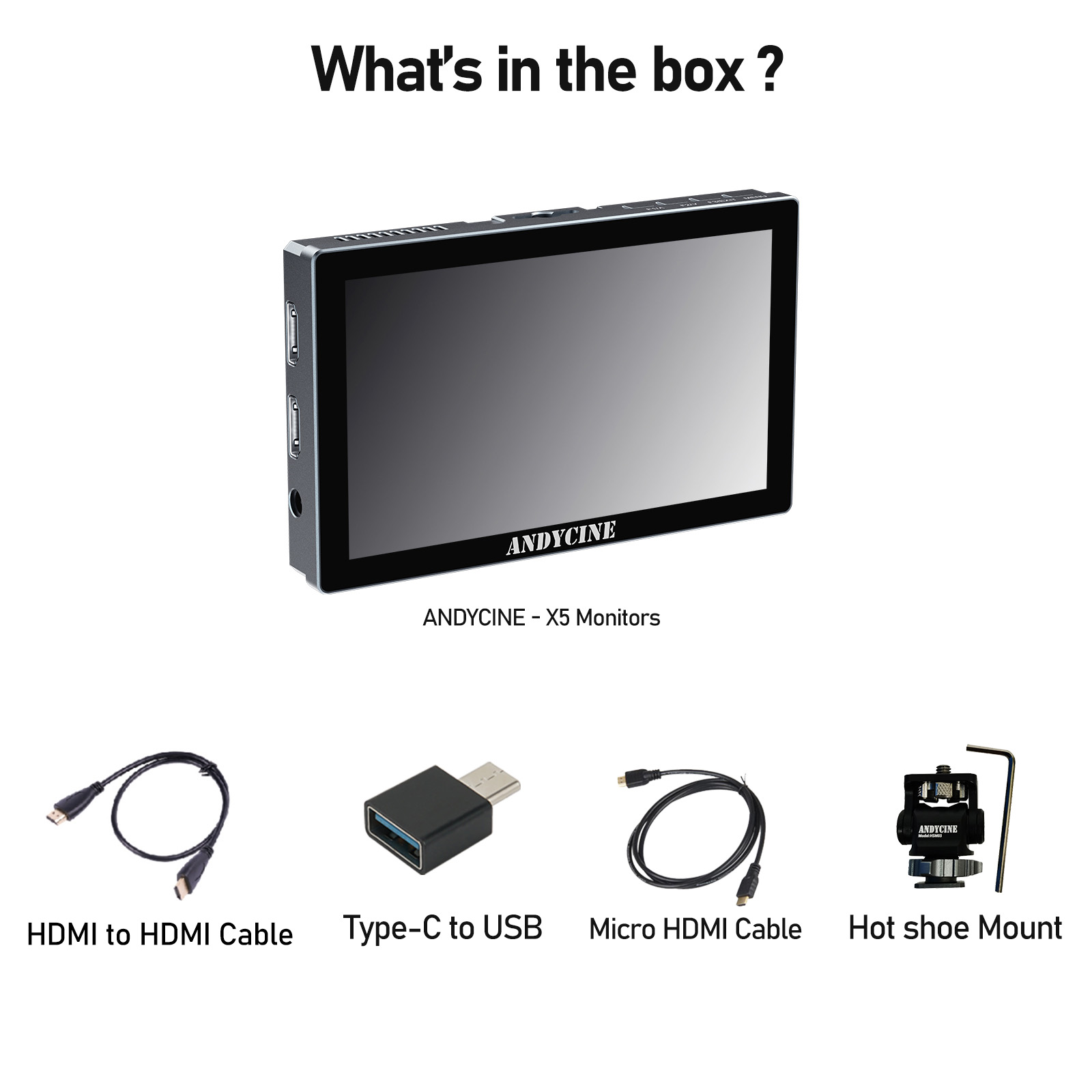

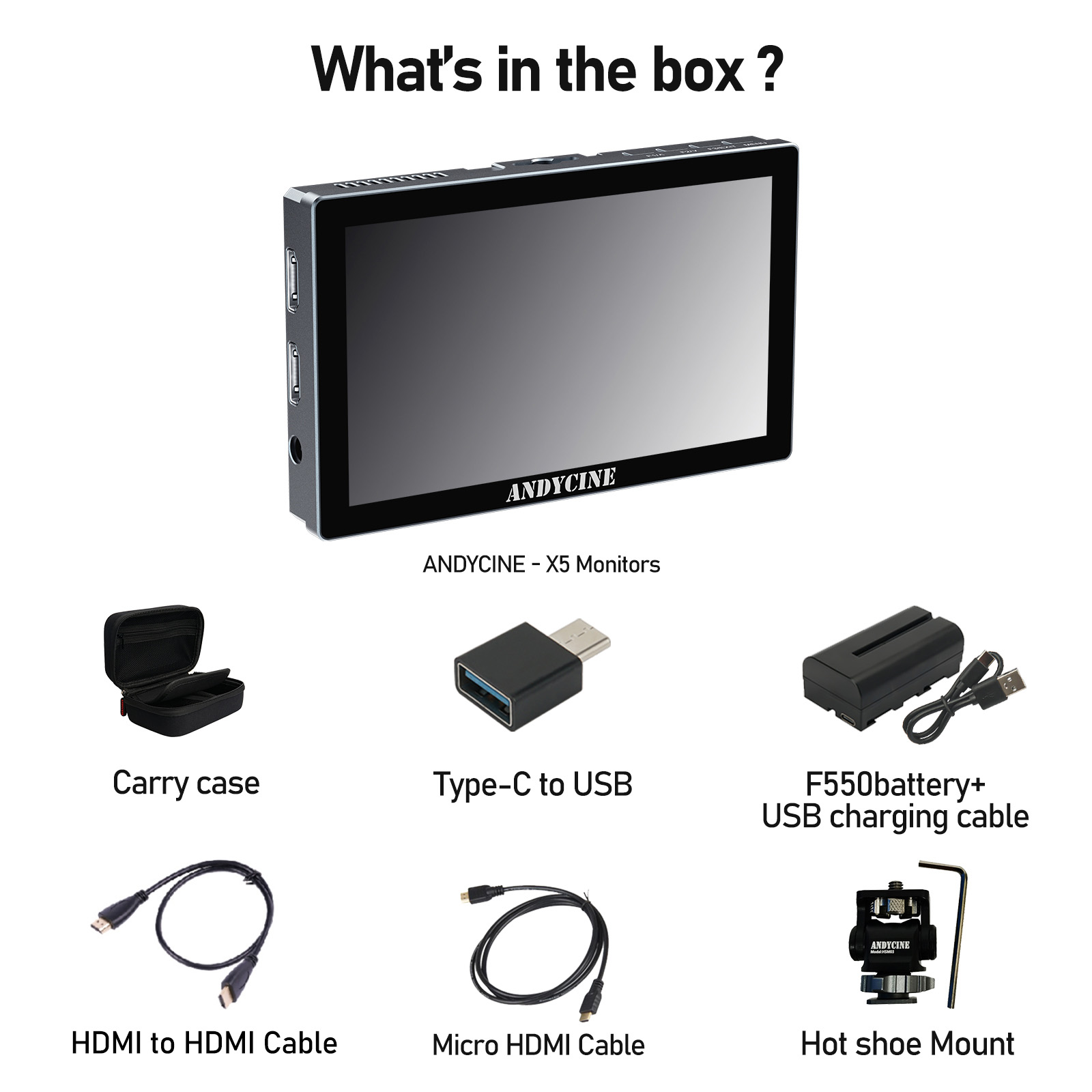

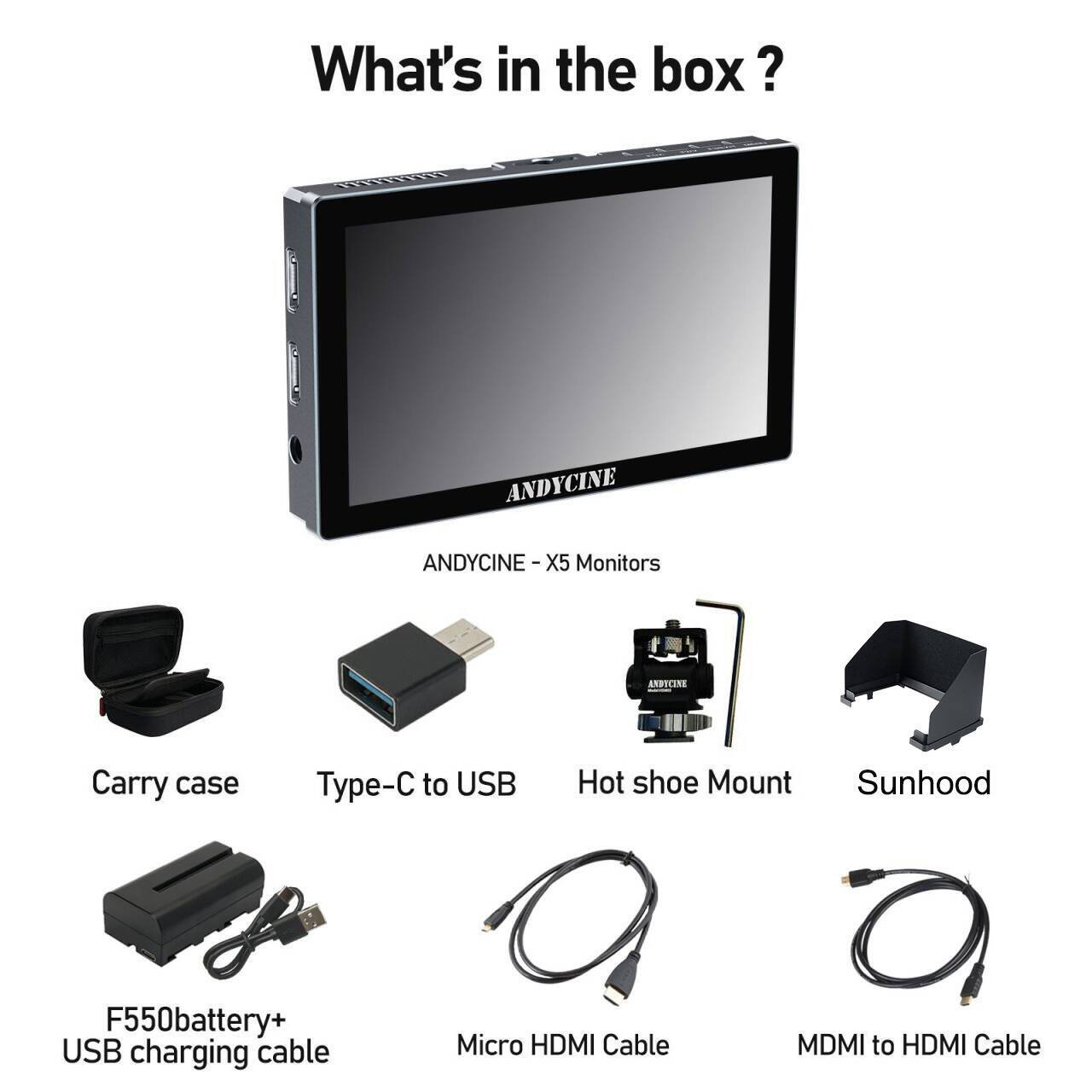

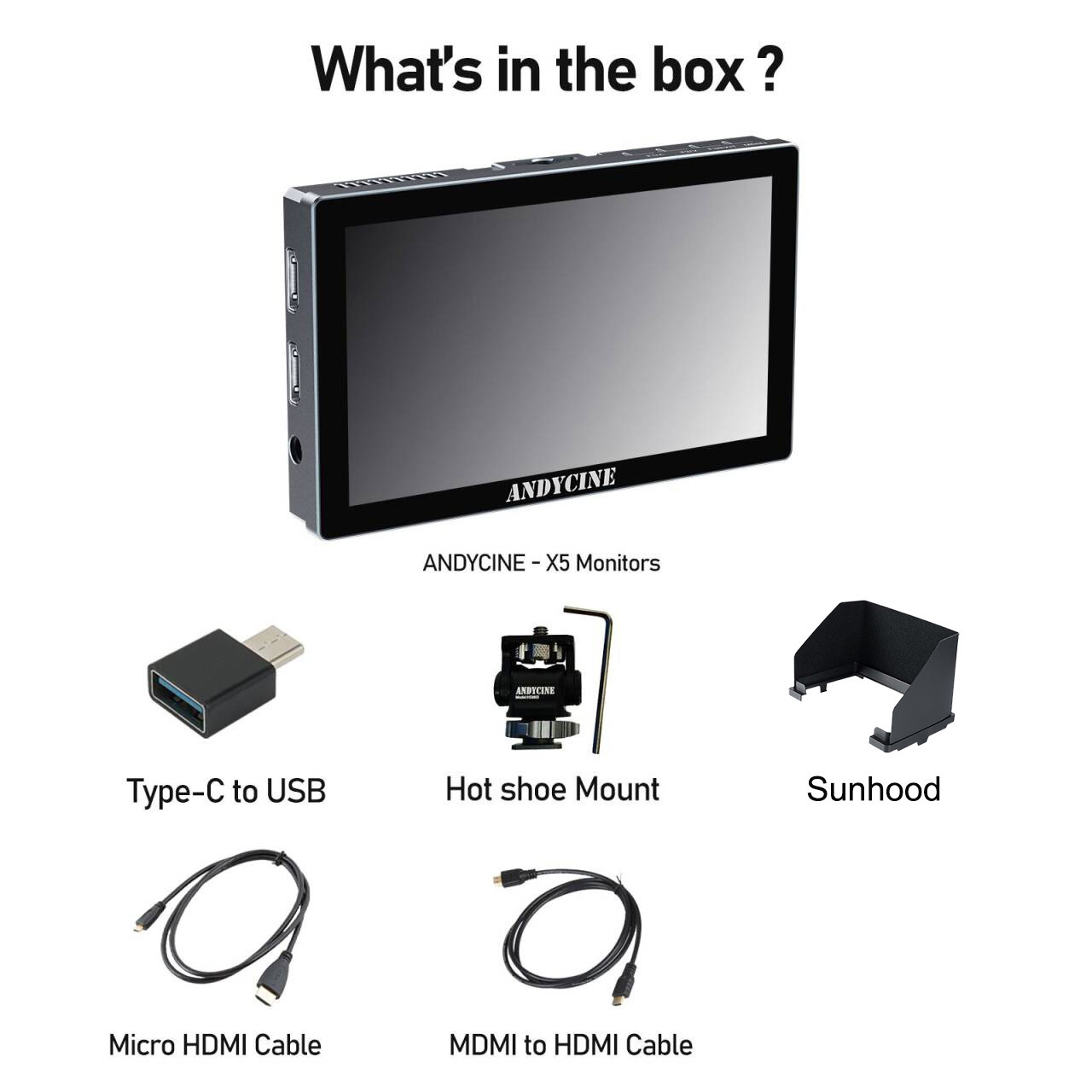

In the Box (X5)

1 x X5 Camera Monitor

1 x HDMI to Micro HDMI Cable

1 x HDMI to HDMI Cable

1 x Hot Shoe Mount+Hex Wrench

1 x User Manual

1 x USB-C to USB-A Adapter
