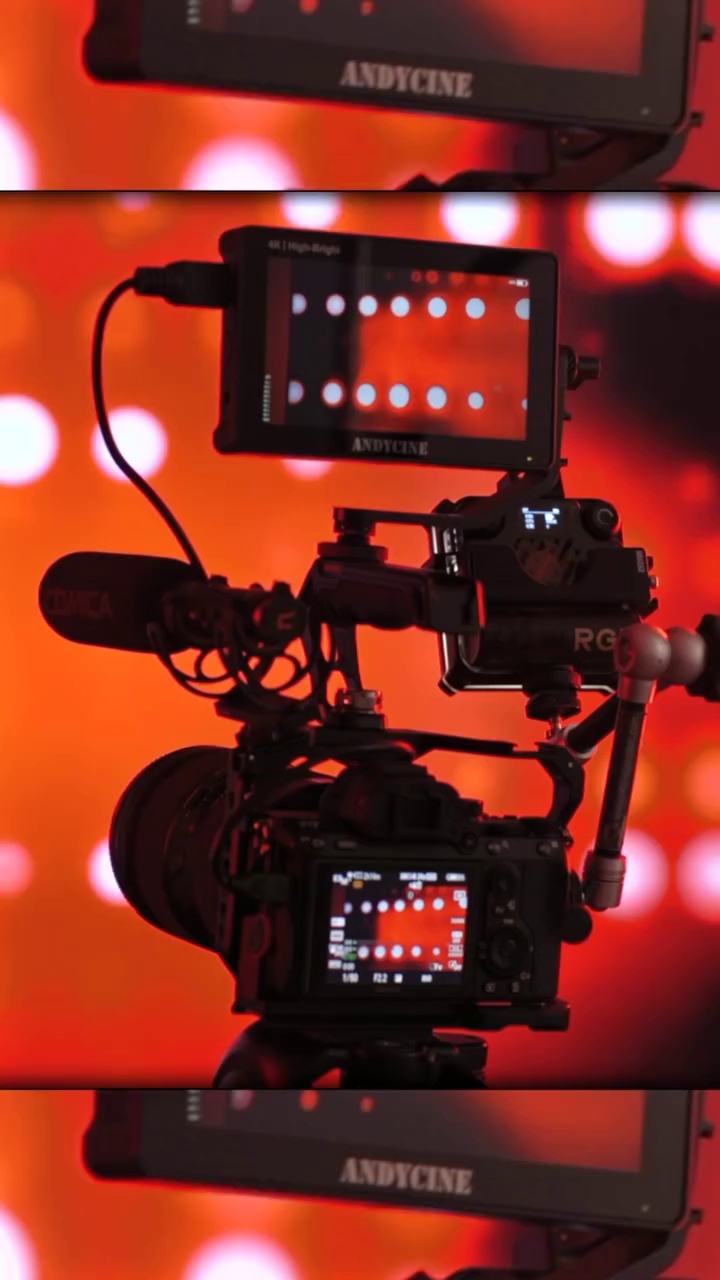

ANDYCINE A6 II 5.5" High-Brightness 4K HDMI Touchscreen Monitor

Panel Type

IPS-Type LCD

Display Size

5.5" / 14.0 cm

Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 160°
Vertical: 160°

Touchscreen

YES

Maximum Brightness

1600 nits / cd/m2

Contrast Ratio

1000:1

Dot Pitch

69.00 x 69.00 µm

Bit Depth / Color Support

8-Bit (16.7 Million Colors)

HDR Compatibility

None

Pixels Per Inch (ppi)

400 ppi

Real-Time LUT Monitoring

None

Image Controls

Focus Assist, Histogram, R/G/B/Chroma Only, Waveform

Video I/O

1 x HDMI Input
1 x HDMI Output

Embedded Audio

HDMI

Audio I/O

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

None

Power I/O

1 x Barrel 5.5 mm/2.1mm (12 VDC) Input
1 x USB-C (5 VDC) Input
1 x Barrel 5.5 mm (8.4 VDC) Output

Media/Memory Card Slot

None

Wi-Fi

None

Bluetooth

None

Mobile App Compatible

No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Video Format

HDMI (8-Bit)
DCI 4K: 24
UHD 4K: 30/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i

DC Input Power

12 VDC

Battery Type

1 x L-Series

Power Consumption

9 W (Maximum)

Mounting

4 x 1/4"-20 Female

Dimensions

5.8 x 3.7 x 0.97" / 148 x 93 x 24.75 mm

Weight

8.5 oz / 240 g, Including Battery Plate
